SERVO MOTORS — X SERIES
HCFA Global delivers precision-engineered servo motor solutions for industrial automation. Our X Series — X0, X2, and X6 — covers a comprehensive power range from compact low-inertia motors to high-torque heavy-duty drives. Designed for CNC machinery, robotics, packaging, and smart factory environments, each motor combines exceptional positioning accuracy, rapid response, and robust reliability for the most demanding applications.

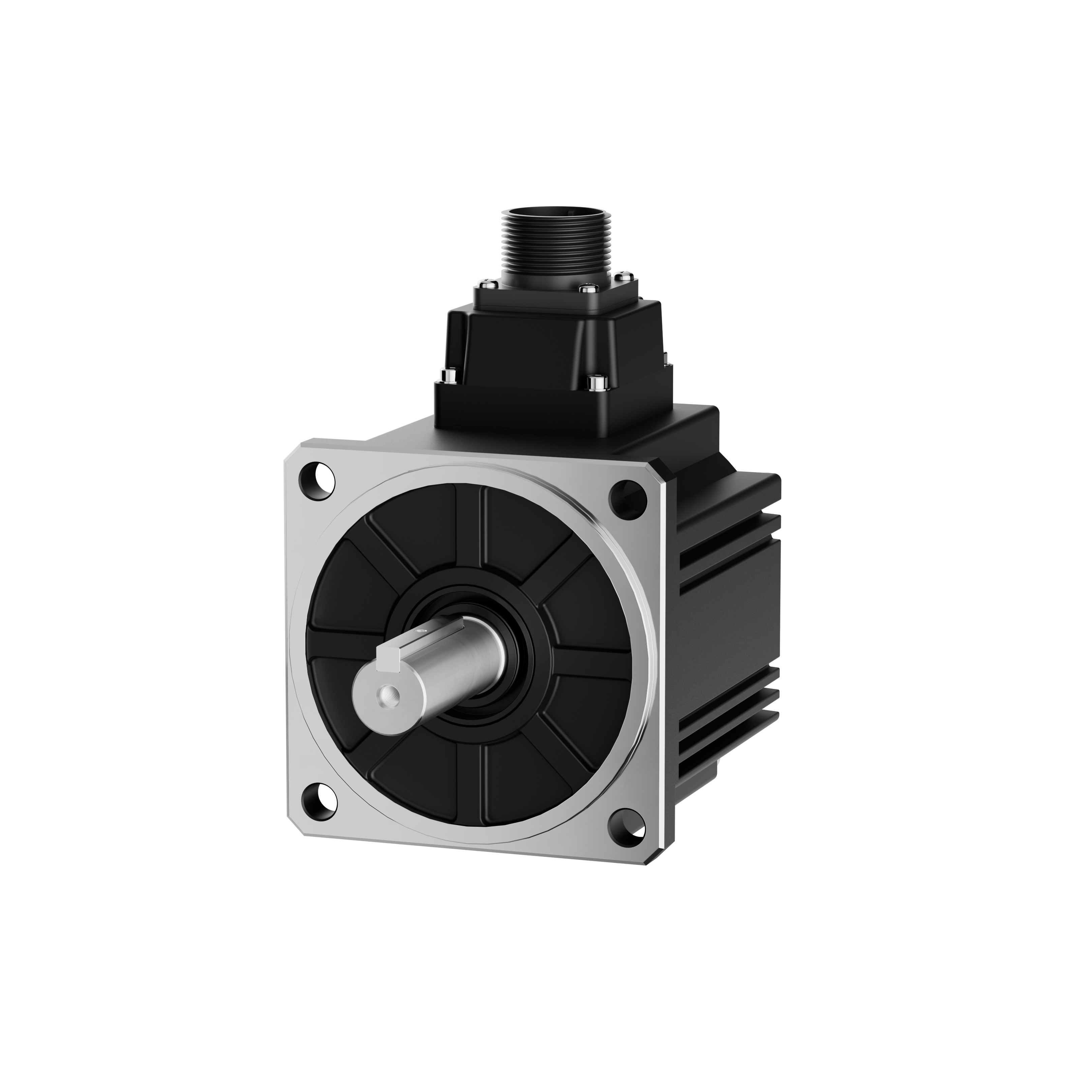

X0 MOTOR
Partner: HCFA
- Compact low-inertia AC servo motor — 50W to 750W
- Ideal for small CNC, pick-and-place, and lab automation
- 23-bit absolute encoder for sub-micron positioning
- Rated speed: 3000 RPM | Voltage: 220V AC
- IP65 rated — suitable for light industrial environments
X2 MOTOR
Partner: HCFA
- Mid-range AC servo motor — 1kW to 3kW power band
- Optimized for CNC milling, lathes, and robotic arms
- 24-bit multi-turn absolute encoder with battery backup
- Rated speed: 2000–3000 RPM | Voltage: 220V / 380V AC
- IP67 protection — resistant to coolant and dust ingress

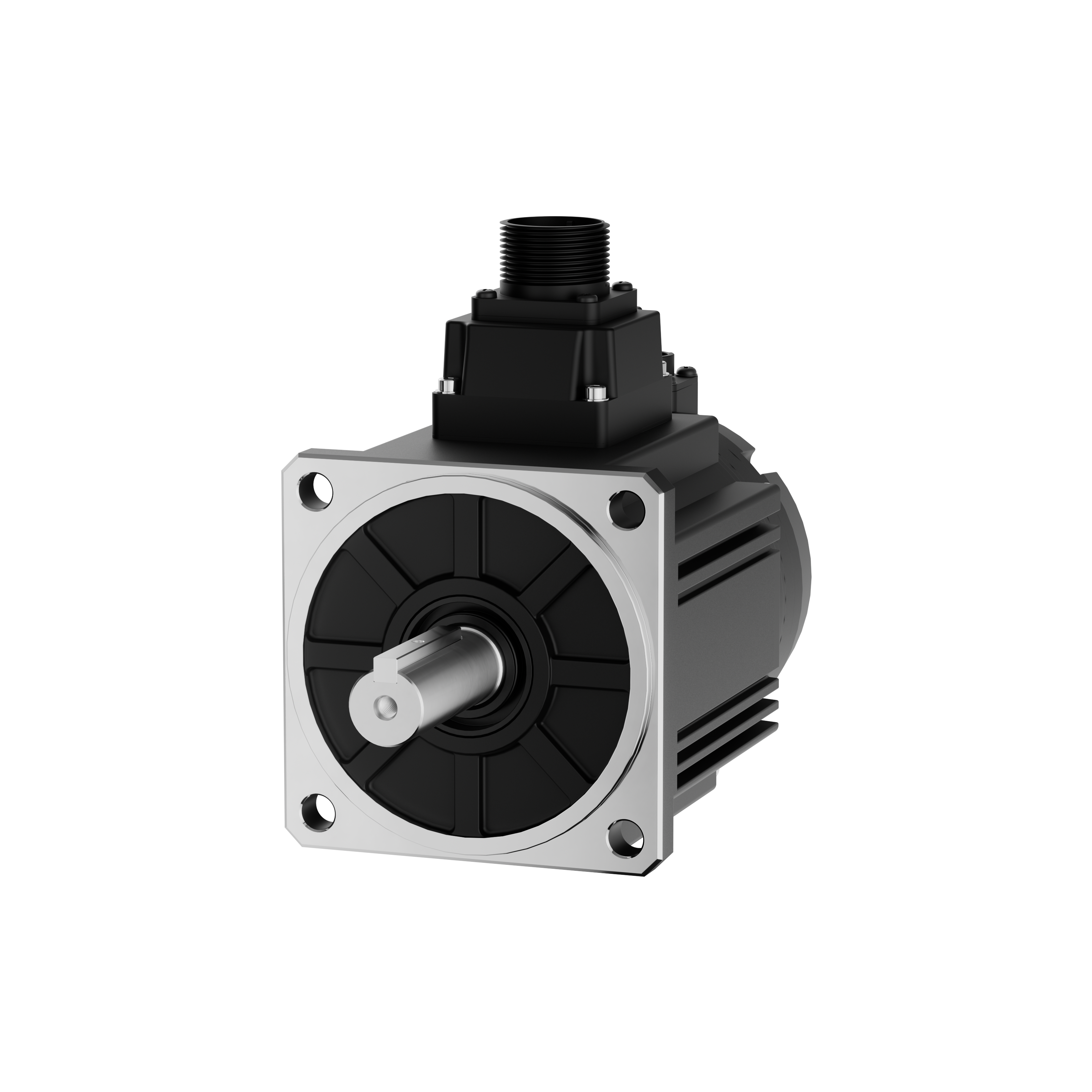

X6 MOTOR
Partner: HCFA
- High-power industrial servo motor — 5kW to 15kW
- Built for heavy-duty CNC, injection molding, and presses
- 25-bit multi-turn absolute encoder — vibration resistant
- Rated speed: 1500–2000 RPM | Voltage: 380V–480V AC
- IP67 with forced-air cooling for continuous high-load duty
